HP Designjet Z6

HP’s affordable 6-ink printer to produce durable prints



HP DesignJet Z6 PostScript®

24" Model

44" Model

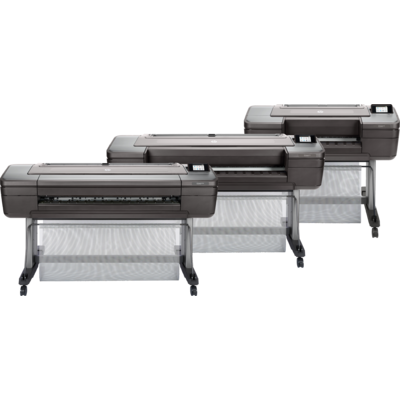

HP DesignJet Z6 Family

HD PRINTHEADS

6 HP VIVID PHOTO INKS

HP PIXEL CONTROL

High-definition prints, fast and secure. More quality with fewer inks.

Impress everyone with smooth transitions using HP Pixel Control and no need for light inks using HP printheads with dual drop technology.
Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.
Handle even the most complex GIS maps with powerful processing architecture and the Adobe PDF Print Engine. Plus, cut maps to different sizes in fewer steps with the first printer to include an integrated vertical trimmer.

PRECISE – Clearly distinguish subtle details

  • Read details more clearly and see high- contrast color with new high-definition HP printheads.
  • No need for light inks with HP’s dual drop technology.
  • Get smooth gradients, even for challenging color combinations, with HP Pixel Control.
  • Work with water- and fade-resistant prints, indoors and out, with HP Vivid Photo Inks.

FAST – Work without delays

  • Handle even the most complex projects with powerful processing architecture and the Adobe PDF Print Engine
  • Cut maps to different sizes in fewer steps with the first printer including an integrated vertical trimmer.
  • Print up to 20% faster4 with 2400 nozzle- per-inch, high-definition HP printheads.
  • Spend less time on media changes and adjustments with dual roll support and automatic roll switching.

SECURE – Protect your work and your information

  • Protect printers/data from unauthorized access with HP Secure Boot, whitelisting, and encrypted hard disk.
  • Protect documents, preserve confidentiality with authentication solutions like PIN printing, card readers.
  • Secure your printers with HP JetAdvantage Security Manager; manage your feet remotely with HP Web Jetadmin.

Print

Model size: 24 in
Speed specifications
Print speed: 720 ft²/hr[1]
Memory specifications
Memory:128 GB (virtual)[8]
Internal Storage:500 GB self-encrypting
Technical specifications
Print quality (best): Color: Up to 2400 x 1200 optimized dpi
Print technology: HP Thermal Inkjet
Number of print cartridges: 6 (cyan, magenta, yellow, matte black, photo black, chromatic red)
Finished output handling: Roll feed, top sheet feed, media output bin, automatic horizontal cutter
Media types: Photographic, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit
Media sizes standard (sheets, rolls):11 to 24-in

Connectivity

Connectivity, standard: Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab) & USB Type-A host port
Print languages: Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL

Power and operating requirements

Power consumption: < 100 W (printing); < 32 W (ready); < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep); 0.1 W (off)
Operating temperature range:41 to 104ºF & (5 to 40ºC )
Operating humidity range: 20 to 80% RH

Dimensions and weight

Minimum dimensions (W x D x H): 50.9 x 27.4 x 39.3 in
Weight: 145 lb

What’s included

Warranty: One-year limited hardware warranty
What’s in the box: HP DesignJet Z6 PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, quick reference guide, setup poster, power cord
Software included
Printer drivers
HP Click
HP Web Jetadmin
HP JetAdvantage Security Manager
HP DesignJet Utility including HP Color Center
HP Partner Link Pay-per-use
HP MPS

Print

Model size: 44 in
Functions: Print
Speed specifications
Print speed: 866 ft²/hr[1]
Memory specifications
Memory:128 GB (virtual)[8]
Internal Storage: 500 GB self-encrypting
Technical specifications
Print quality (best): Color: Up to 2400 x 1200 optimized dpi
Print technology: HP Thermal Inkjet
Number of print cartridges: 6 (cyan, magenta, yellow, matte black, photo black, chromatic red)
Finished output handling: Roll feed, top sheet feed, media output bin, automatic horizontal cutter
Media types: Photographic, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit
Media sizes standard (sheets, rolls): 11 to 44-in

Connectivity

Connectivity, standard: Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab) & USB Type-A host port
Print languages: Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL

Power and operating requirements

Power consumption: < 100 W (printing); < 32 W (ready); < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep); 0.1 W (off)
Operating temperature range: 41 to 104ºF & (5 to 40ºC )
Operating humidity range: 20 to 80% RH

Dimensions and weight

Minimum dimensions (W x D x H): 71 x 27.4 x 39.3 in
Weight:189 lb

What’s included

Warranty: One-year limited hardware warranty
What’s in the box: HP DesignJet Z6 PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, 3-in core adapter, quick reference guide, setup poster, power cord
Software included
Printer drivers
HP Click
HP Web Jetadmin
HP JetAdvantage Security Manager
HP DesignJet Utility including HP Color Center
HP Partner Link Pay-per-use
HP MPS

Print

Model size: 44 in
Functions: Print
Speed specifications
Print speed: 866 ft²/hr[1]
Memory specifications
Memory:128 GB (virtual)[8]
Internal Storage: 500 GB self-encrypting
Technical specifications
Print quality (best): Color: Up to 2400 x 1200 optimized dpi
Print technology: HP Thermal Inkjet
Number of print cartridges: 6 (cyan, magenta, yellow, matte black, photo black, chromatic red)
Finished output handling: Two automatic roll feeds, smart roll-switching, top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)
Media types: Photographic, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit
Media sizes standard (sheets, rolls): 11 to 44-in

Connectivity

Connectivity, standard: Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab) & USB Type-A host port
Print languages: Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL

Power and operating requirements

Power consumption: < 100 W (printing); < 32 W (ready); < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep); 0.1 W (off)
Operating temperature range: 41 to 104ºF & (5 to 40ºC )
Operating humidity range: 20 to 80% RH

Dimensions and weight

Minimum dimensions (W x D x H): 71 x 27.4 x 39.3 in
Weight: 211 lb

What’s included

Warranty: One-year limited hardware warranty
What’s in the box: HP DesignJet Z6 PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, 3-in core adapter, quick reference guide, setup poster, power cord
Software included
Printer drivers
HP Click
HP Web Jetadmin
HP JetAdvantage Security Manager
HP DesignJet Utility including HP Color Center
HP Partner Link Pay-per-use
HP MPS
